PolyController Test Rig

PolyController Test Rig

PolyController Test Rig

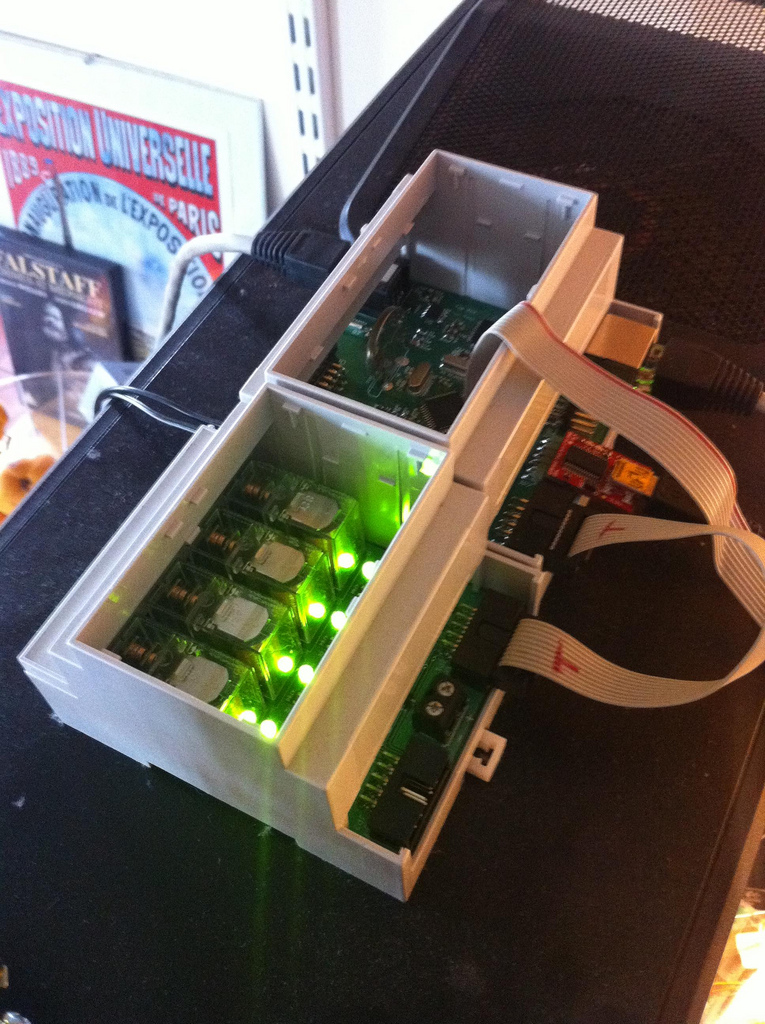

This is the test setup on top of my PC; a main board connected to a relay board, in this case with all 4 relays switched on. You can also see the Ethernet and 1-Wire cables on either side, the SparkFun FTDI breakout board, and diagnostics ribbon cable (connected to an array of 8 LEDs).
